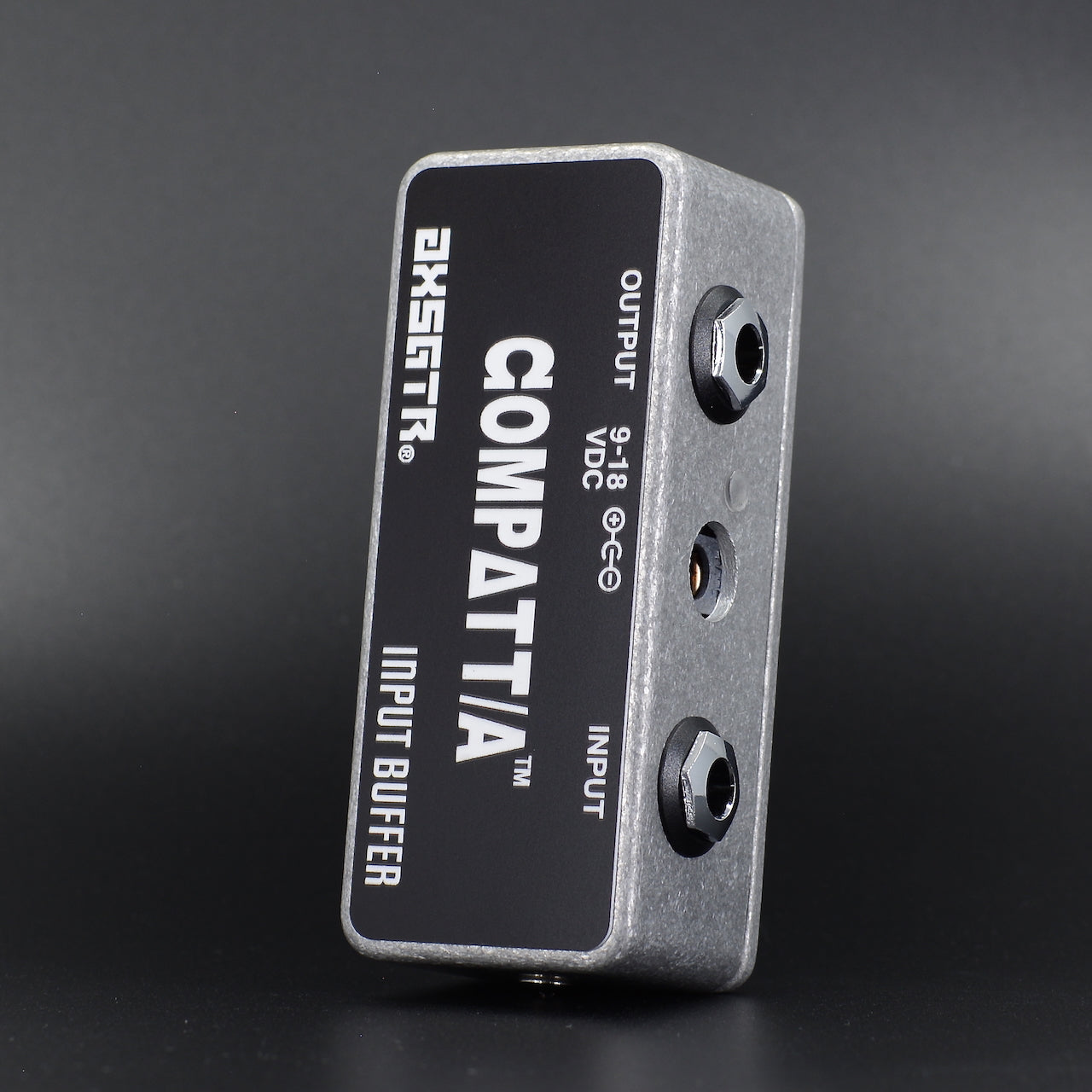

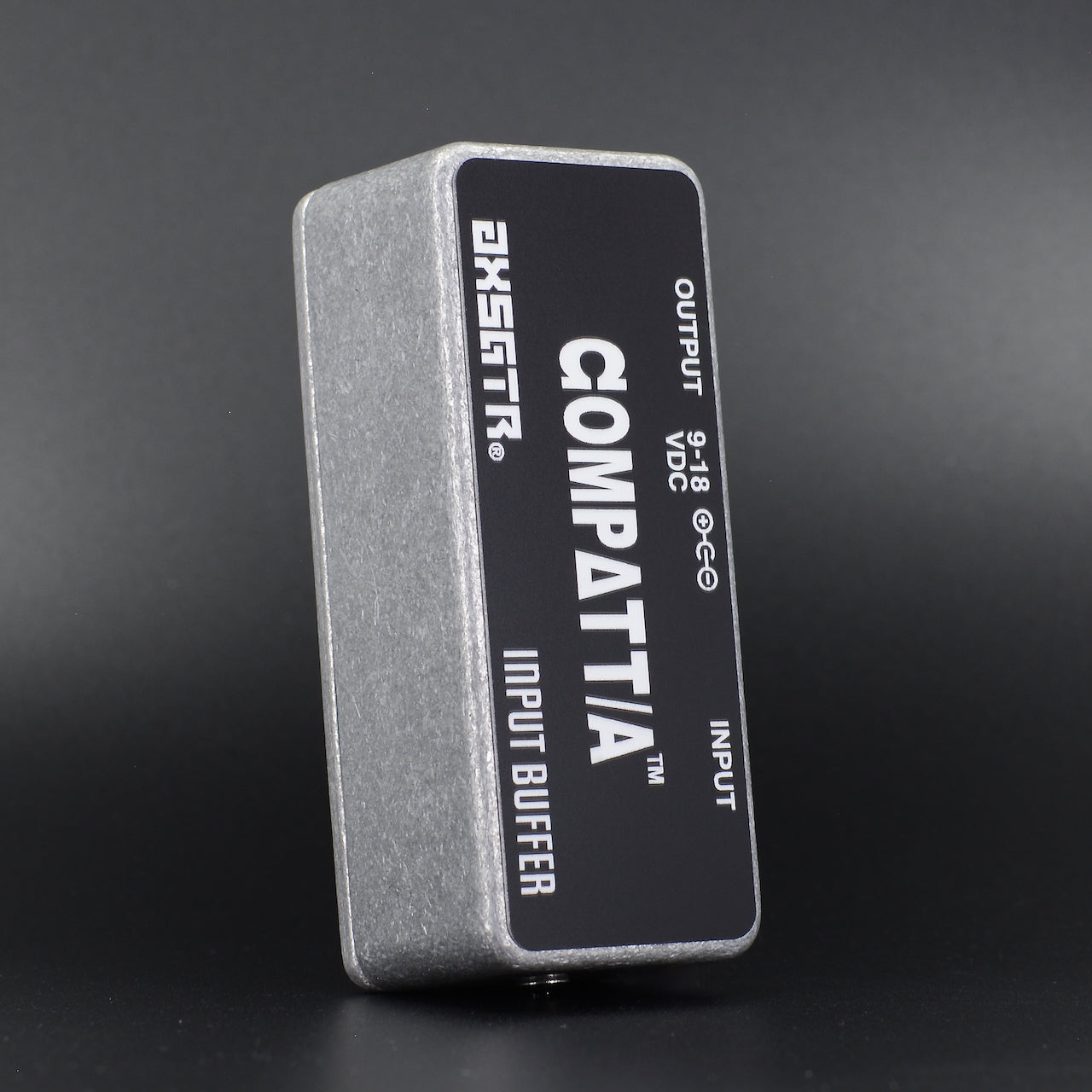

Compatt/A™ Input Buffer

The Compatt/A™ is a discrete Class-A input buffer for guitar. It will safeguard, strengthen, and prepare a guitar's signal for whatever follows on a pedalboard and in a rig.

The Compatt/A™ is a discrete Class-A input buffer for your guitar. It will safeguard, strengthen, and prepare a guitar's signal for whatever follows on a pedalboard and in a rig.

The discrete Class-A circuit has an input impedance and other finely tuned characteristics which mimic that of tube amplifier inputs.

It presents a guitar with a dynamic and ideal load that remains steadfast — resulting in consistent tone while still allowing the guitar to breathe and feel, as if it were plugged directly into the front of a beloved tube amp.

For the benefits of buffers, see our FAQ page.

• Input Impedance: 1M ohm
• Output Impedance: 100 ohm
• Dimensions: 3.72 x 1.56 x 1.28in. / 94.5 x 39.5 x 32.5mm
• Power Requirements: 9-18VDC 100mA via a 2.1 x 5.5mm barrel plug with a negative centre pin (like Boss pedals). Adapter not included.

User Manual and Wiring Diagrams (click to enlarge).
