Fuzz Loop™ Interface

Regular Price $189.00 USD
Regular Price $189.00 USD Sale Price $189.00 USD
On Sale! Sold Out
Version

Designed and hand-built (by Mario) in Canada.

The Fuzz Loop™ is a single loop switcher that combines our un-buffer and Class-A input buffer. It is specifically designed to interface germanium fuzz and impedance sensitive pedals with wireless systems and active pickup equipped guitars.

Guitars and analog pedals have a dynamic and interdependent relationship. When they are connected together, the signal that passes between them and what is produced, is a direct result of the unique characteristics of the two connected devices. So, you can't substitute either of them and expect the exact same result.

But the Fuzz Loop™ can get you exceptionally close! It'll make your germanium fuzz or other impedance sensitive pedal think that it has a guitar connected directly to its input.

The discrete Class-A buffer has an input impedance and other finely tuned characteristics which mimic that of tube amplifier inputs. It'll safeguard, strengthen, and prepare your fuzz signal for whatever follows on a pedalboard and in a rig.

The buffer presents the fuzz pedal's output with a dynamic and ideal load that remains steadfast — resulting in consistent tone while still allowing it to breathe and feel — as if it were plugged directly into the front of a beloved tube amplifier.

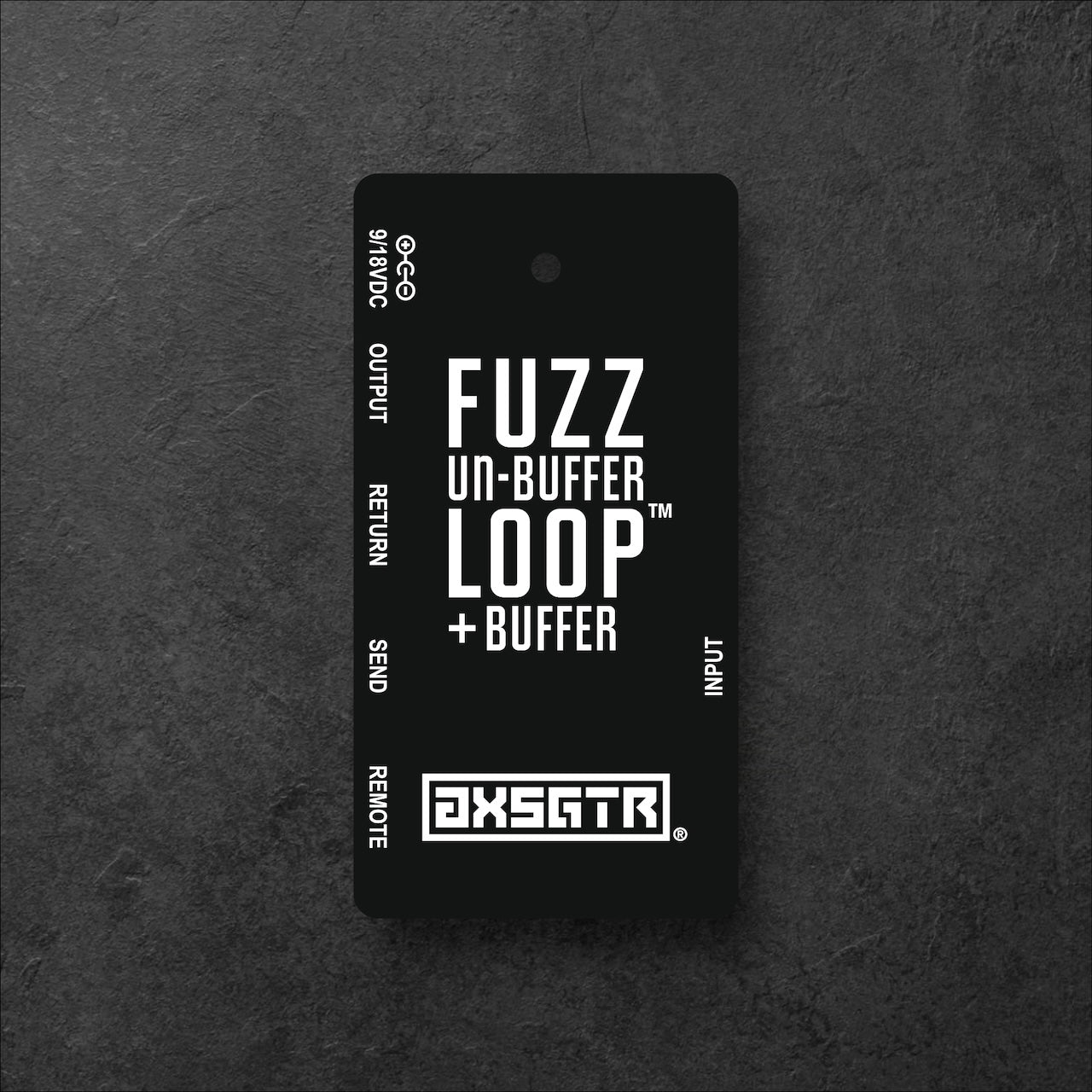

The "Remote" version is in a low profile enclosure and can be mounted on or under any pedalboard. It's controlled via ¼" TS function switching jack, found on most MIDI switchers and MIDI controllers, and remote foot-switches.

For the benefits of buffers, see our FAQ page.

  • Un-Buffer Impedances
    • Input: 1M ohm
    • Output: High-Z
  • Class-A Buffer Impedances
    • Input: 1M ohm
    • Output: 100 ohm
  • Enclosure Dimensions (in./mm)
    • Stomp version: 4.41 x 2.38 x 2.18 / 112.0 x 60.5 x 55.4
    • Remote version: 4.43 x 2.38 x 1.24 / 112.5 x 60.5 x 31.5
    • FtSw (for Remote): 2.07 x 1.5 x 1.76 / 52.6 x 38.1 x 44.7
  • Right Angle ¼" Plug Compatability
    • Creation Music Minicake, Squareplug SP400/500/600, and Switchcraft 226/228
  • Power Requirements: 9VDC & 100mA via a 2.1 x 5.5mm barrel plug with a negative centre pin (like Boss pedals). Adapter is not included.

User Manual
