Running two amps from a MIDI loop switcher, stereo effects or amp simulator pedal will normally result in unwanted ground loop hum and noise. Use the PBC between both the left / right outputs of the loop switcher or stereo pedal, and the inputs of the amps to immediately kill the ground loop, eliminating the hum and noise.
The included PHASE push-button ensures that you will never have a phase cancellation issue (which results in a sound that can be described as hollow, thin, not as loud and / or lacking bottom end or fullness) when running two amplifiers.

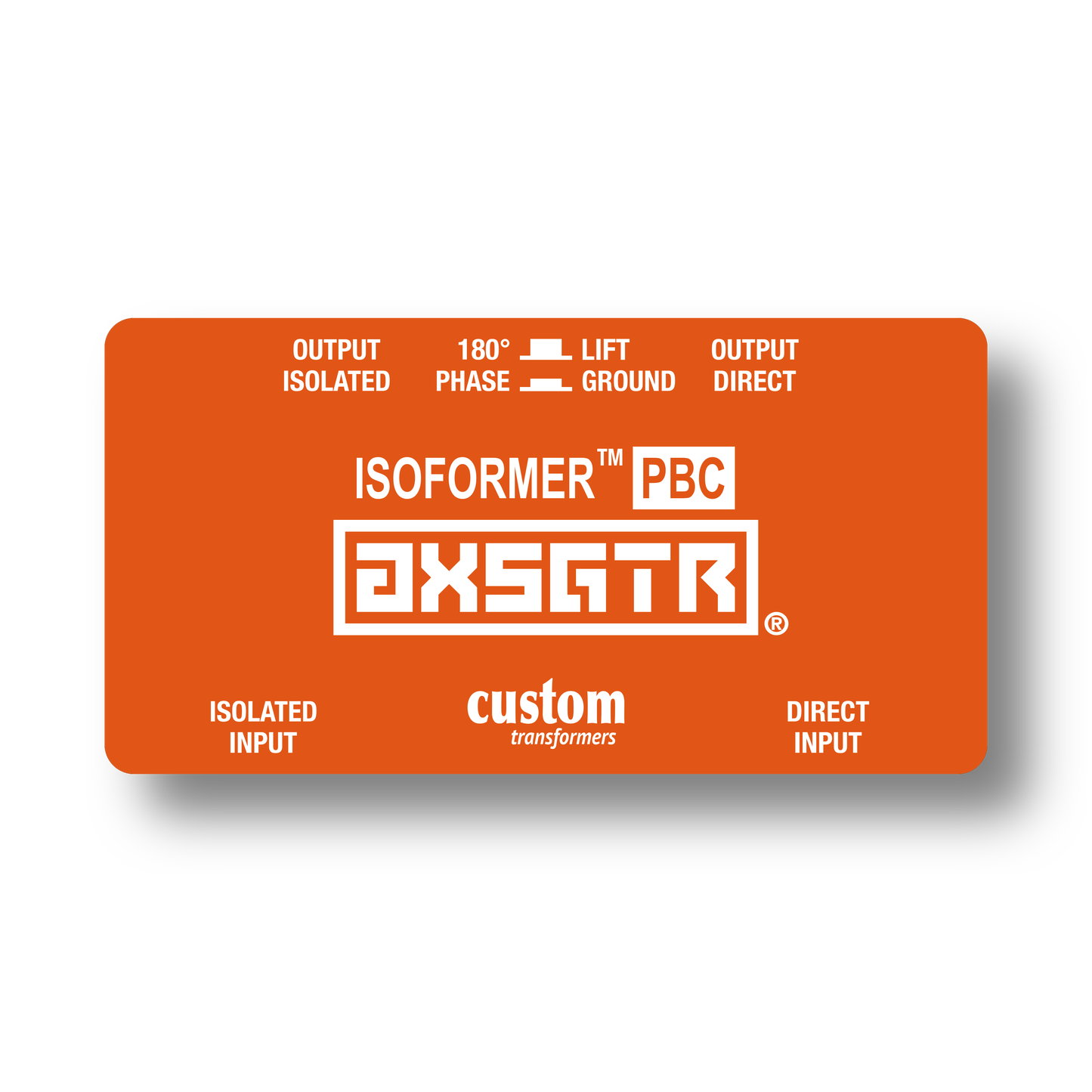

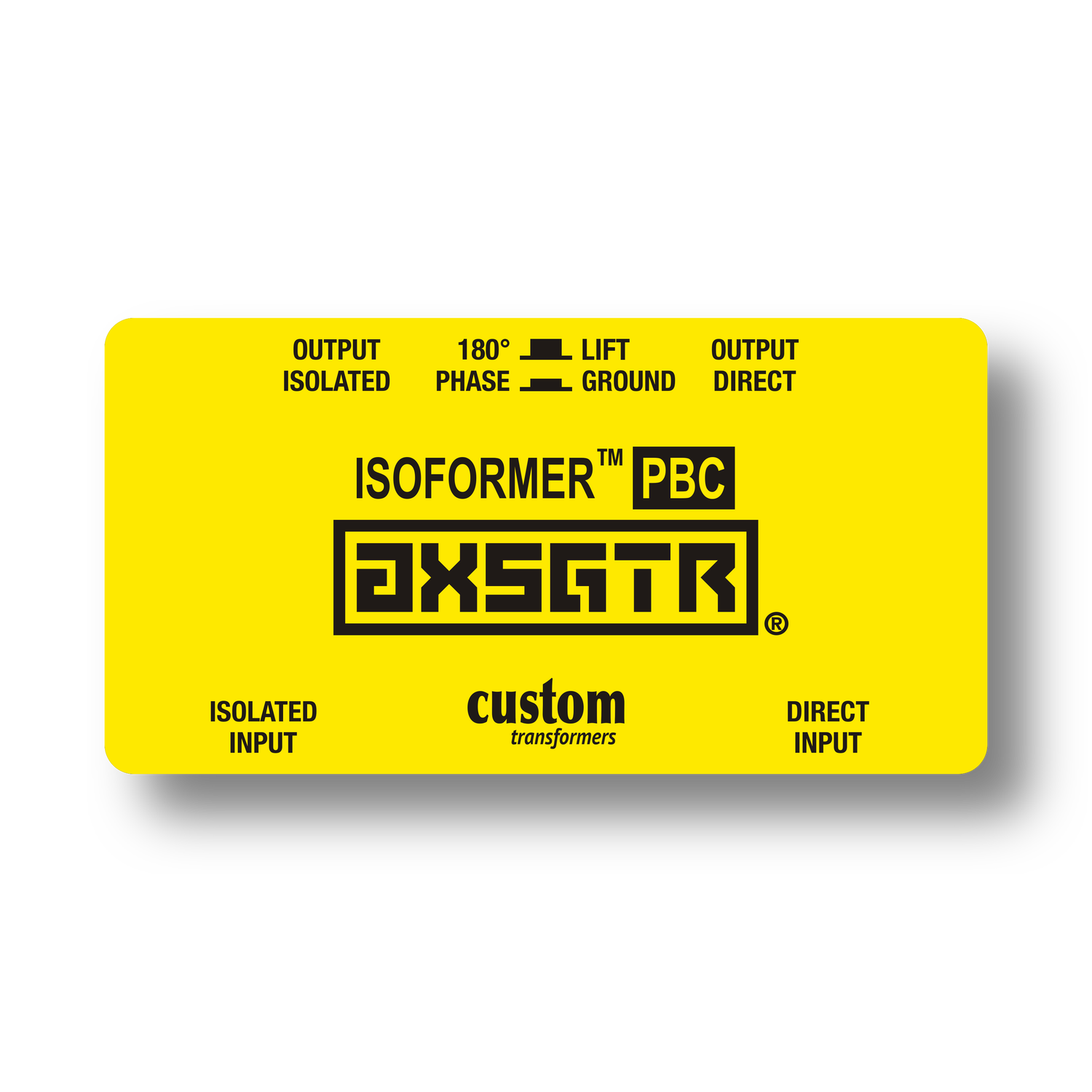

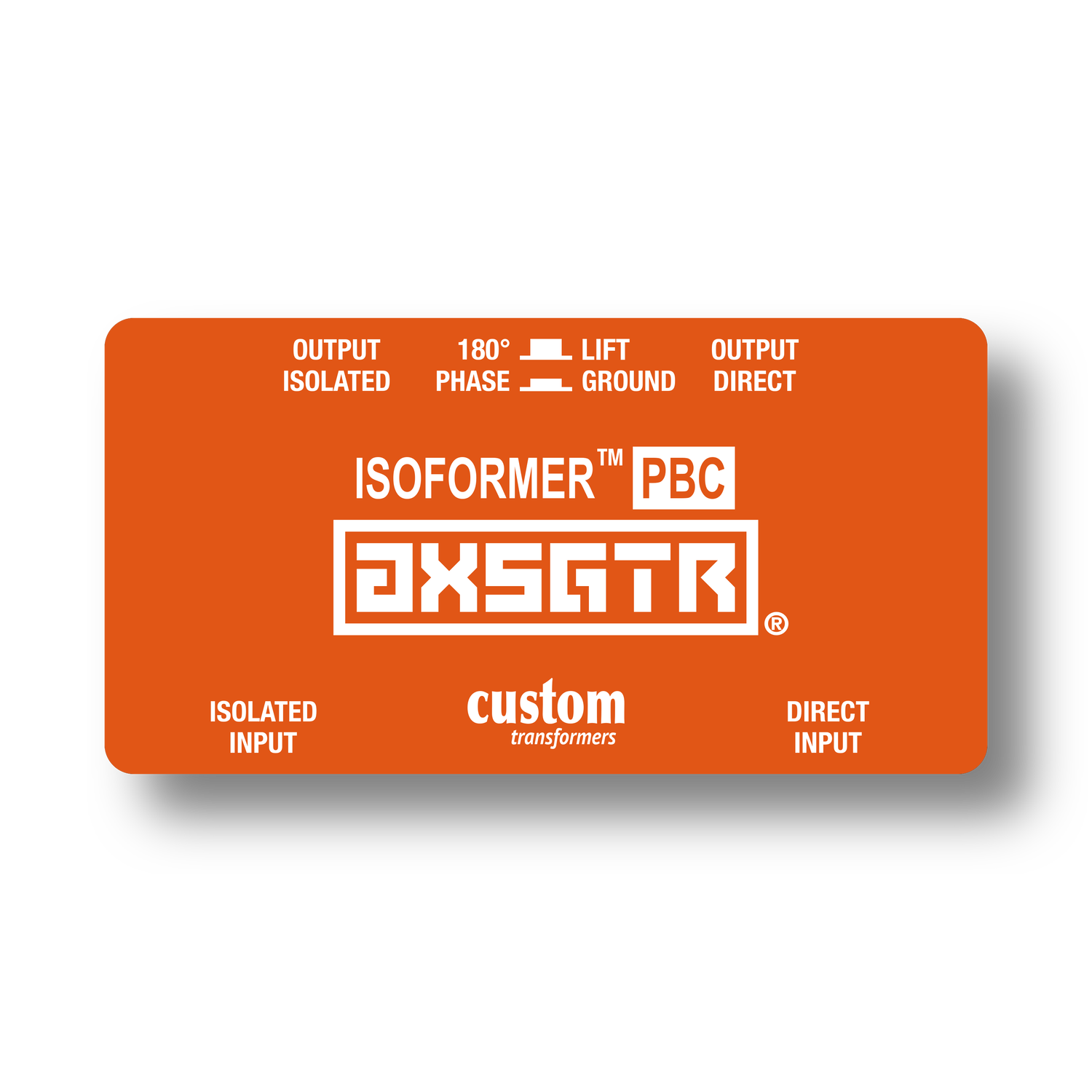

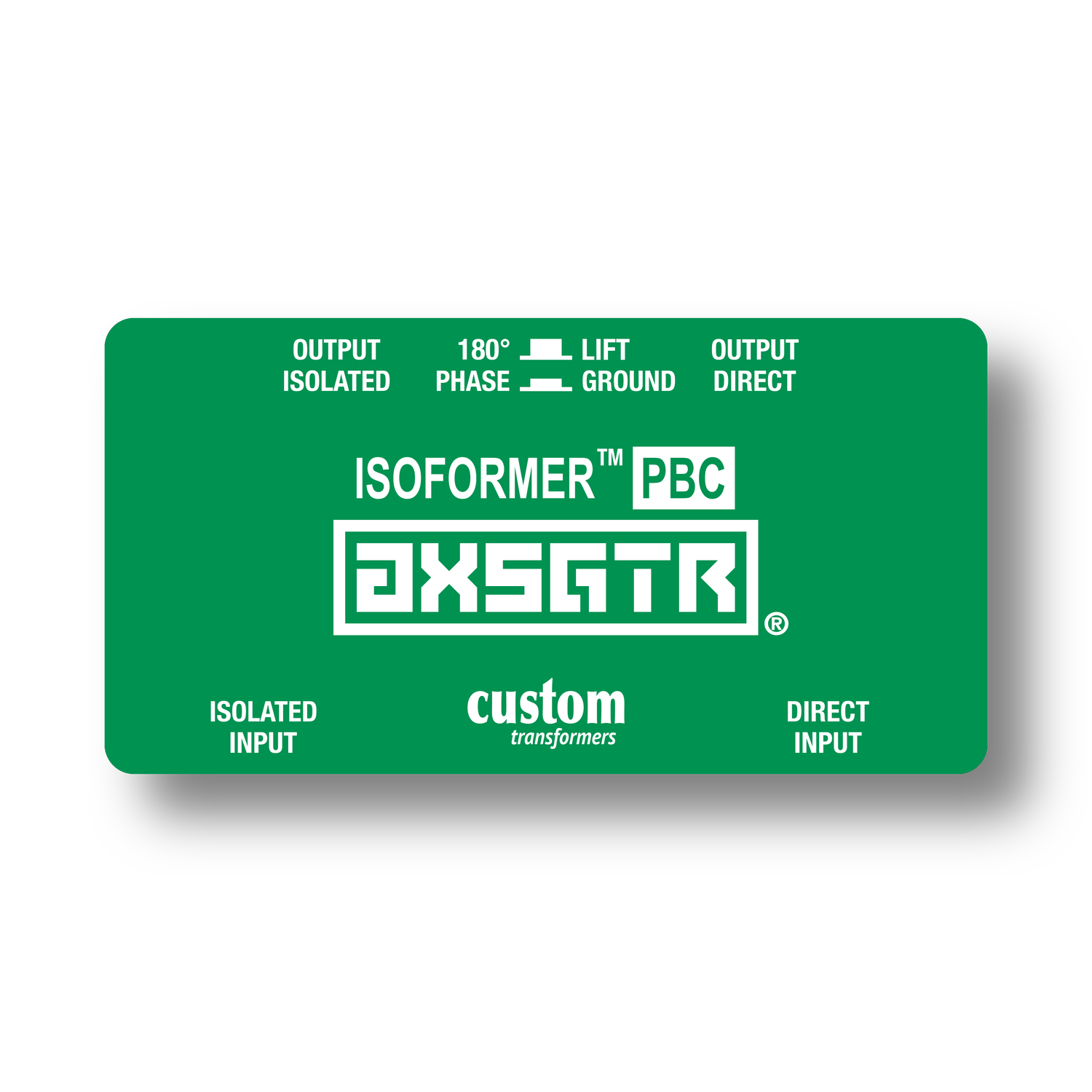

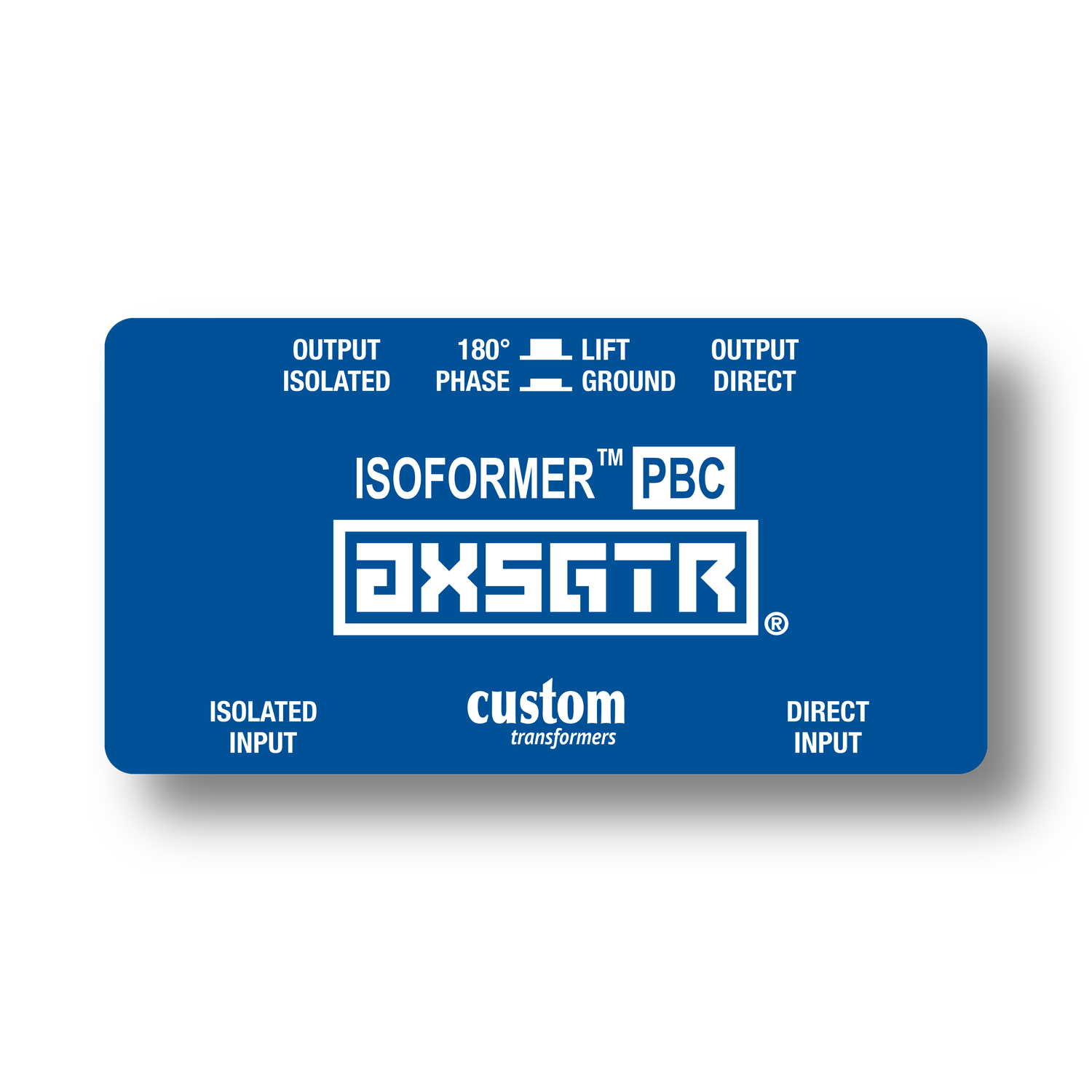

The ground lift and phase push-buttons, and input and output jacks, are decisively arranged so that the IsoFormer™ PBC can serve as a pedalboard's dual mono / stereo output interface or patch-box.
Power Requirements: 100% passive
Dimensions: 4.43 x 2.38 x 1.50in. / 112.5 x 60.5 x 38.1mm
User Manual and Wiring Diagrams (click to enlarge).
See our FAQ page for Axess' history with balanced guitar audio, Eddie Van Halen, and Jensen™ Transformers.
‡Premium CUSTOM Transformer
Similar in quality and specifications to the transformer used in our IsoFormer™ RCV, but designed specifically for applications involving output signals.
