OTS1 Patch-Box

Regular Price $169.00 USD
Regular Price Sale Price $169.00 USD
Sale Sold Out

Diagrams and User Manual

The OTS1 is the first, and smallest, in a series of new patch-boxes meant to serve as a pedalboard's nerve centre. It is where all of the board's connections are consolidated; enabling higher density placement of the pedals on the pedalboard, preserving the effect pedals jacks life, and accelerating and simplifying, the pedalboard setup/teardown time and process.

Ironically, the weakest link in every guitar rig, is the guitar itself - more specifically, its pickups! The hi-Z and low level signal they produce make them easily susceptible to loading and signal loss. So naturally, the OTS1 includes a buffer...

Buffers prevent the loading and loss of (1) high end frequency response (2) signal level, and (3) low end punch, due to cable capacitance and the imperfectly designed input stage/circuitry of some pedals. All of these problems still occur even if all the pedals have true-bypass switching, which also adds inconsistent tone to the equation, every time a different pedal is turned on and off. Every additional pedal, and every extra foot of cable in a rig, results in more and more loading and loss, that only a buffer can prevent.

The OTS1 input buffer is Axess' version of a 'fabled' discrete Class-A buffer circuit that's been described by some as "ultra transparent, natural and musical, just like plugging the guitar straight into the amp".

Regarding the model name / number; On-The-Side, Off-The-Shelf, Over-This-Sh*t ... take your pick! Our friends on Instagram certainly did!

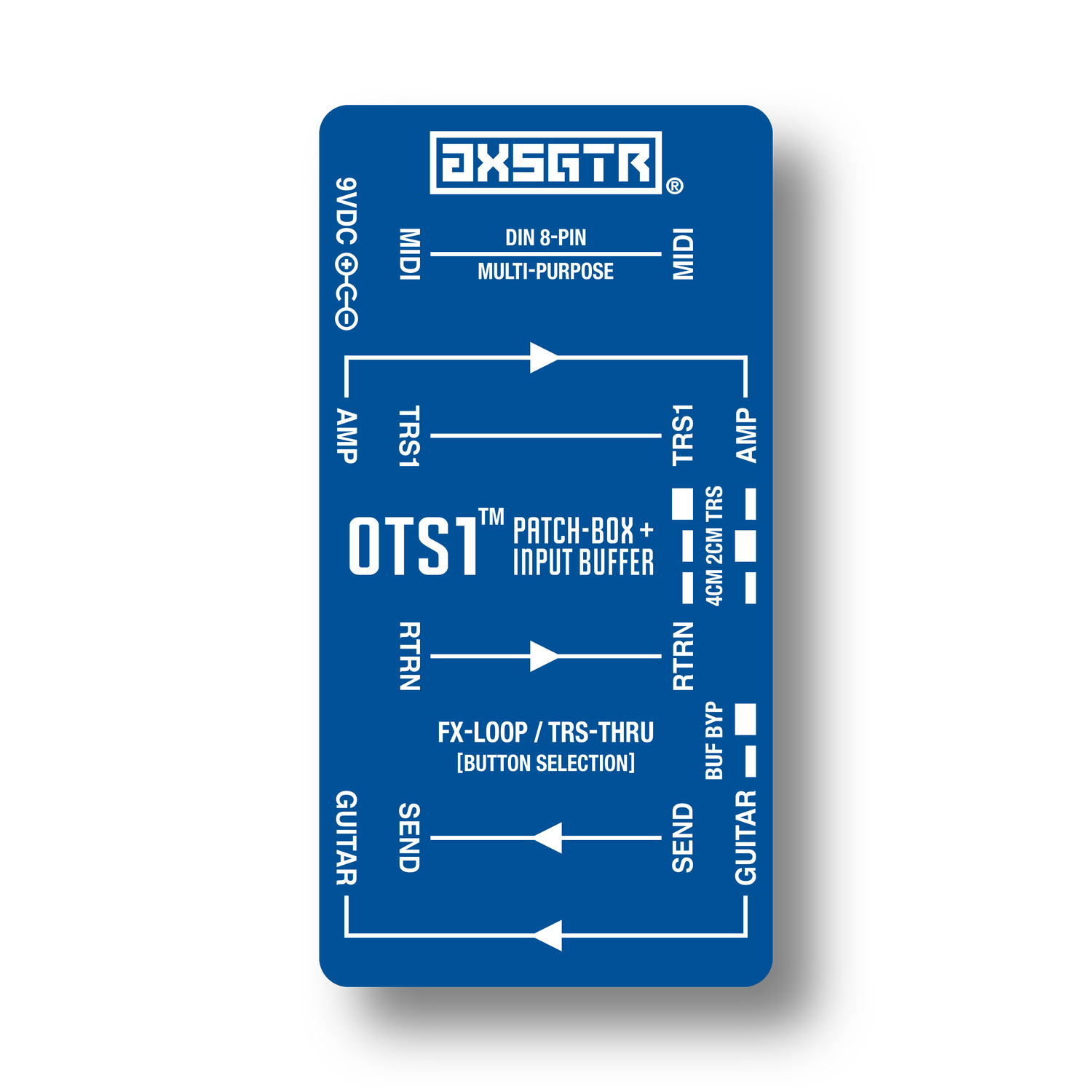

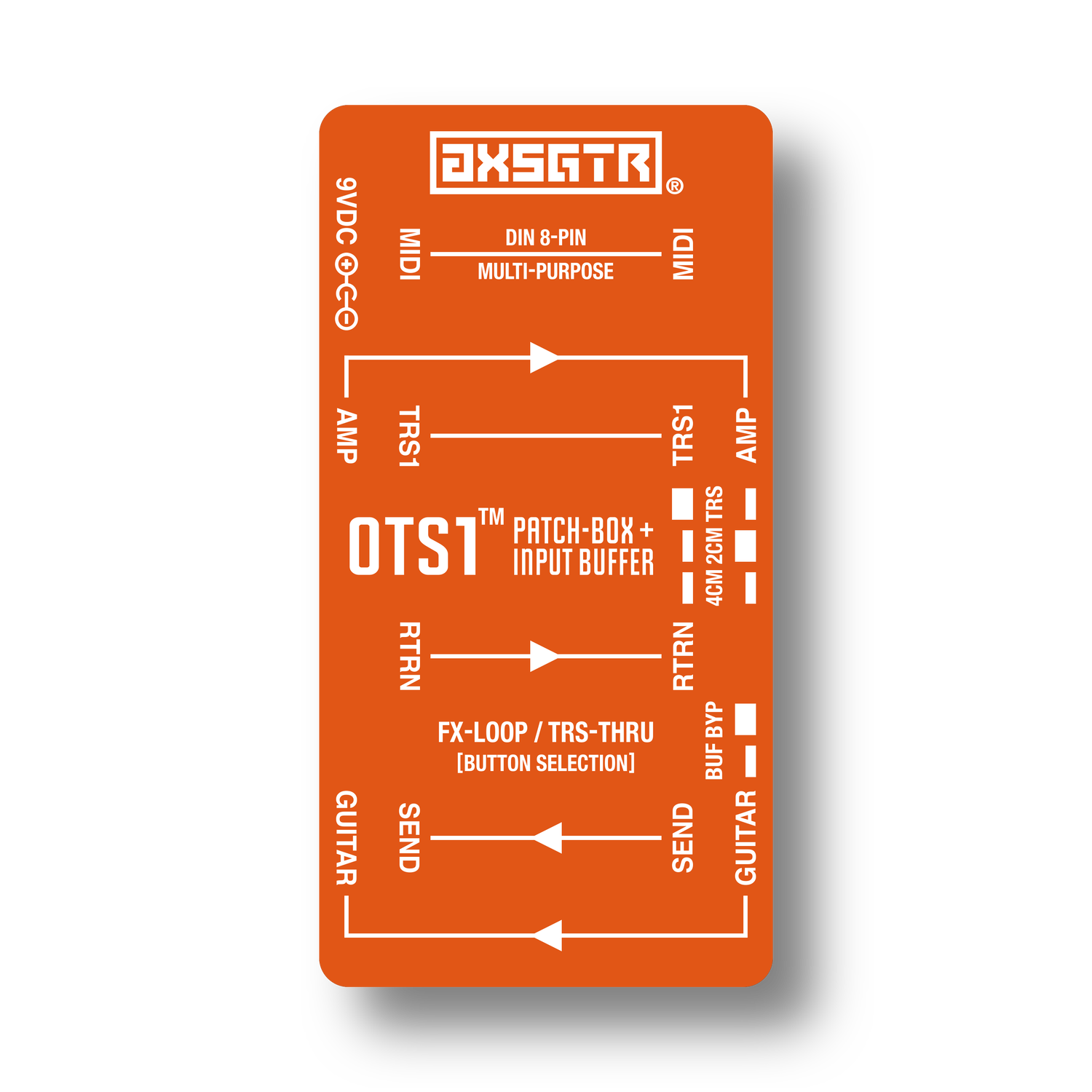

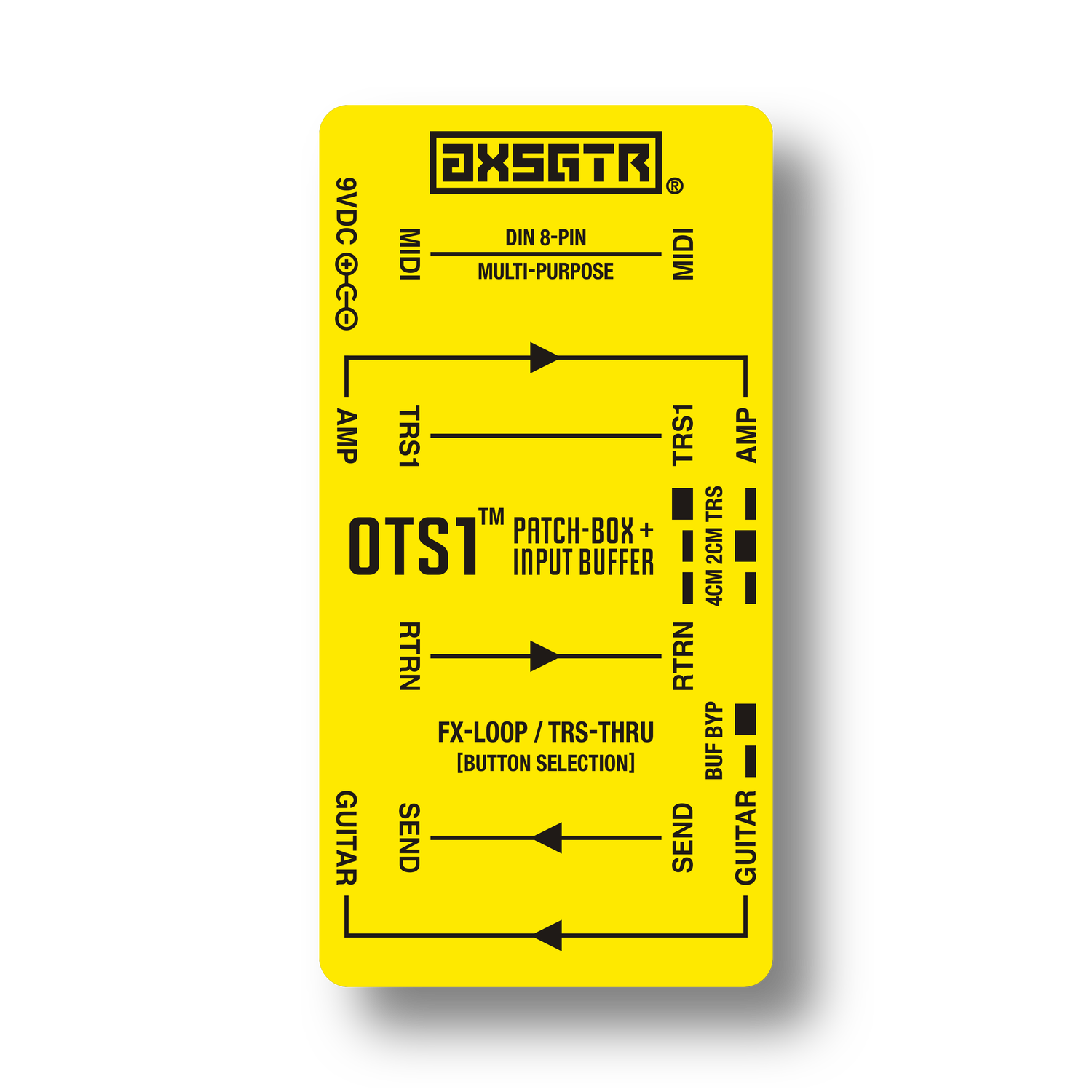

Jacks and Buttons:
  • ¼" buffered thru-jack-pair serves as the primary guitar input.
    • The buffer can be turned on / off by pressing a button.
  • ¼" thru-jack-pair for audio from effects being run between the guitar and amp input.
  • ¼" thru-jack-pair [x2] for four cable method (4CM) for effects being run in the effects loop (SEND and RTRN) of the amp.
    • Easily switch between using an amplifier with an effects loop (4CM) to one without (2CM) by pressing a button.
    • Always use the 2CM no matter what? Instantly isolate the SEND and RTRN jacks to configure them as two additional ¼" TRS thru-jack-pairs for amp foot-switches or passive audio signal paths by pressing a button.
  • ¼" TRS thru-jack-pair for an amplifier foot-switch or additional passive audio signal path.
  • 8-pin DIN thru-jack-pair for MIDI or multi-pin amp foot-switch.
  • ¼" jacks are spaced for 'stubby' Switchcraft #380 plugs, standard straight ¼" plugs, and solderless ¼" plugs.
Power and Enclosure:
  • Powered with 9VDC via a 2.1 x 5.5mm barrel plug with a negative centre pin (like Boss pedals) and the current draw is less than 100mA (adapter not included).
  • Housed in a compact 4.41 x 2.38 x 1.65in. (112 x 60.5 x 42.0mm) and rugged Hammond #1590BS diecast aluminum enclosure for years of reliable use and performance.
  • The enclosure is finished in a tough and textured black polyester powder coat/paint and tour grade self-adhesive labeling is carefully applied by hand.
